Radar Constellation | Unique Precision, Quality and Reliability

Looking for the best-in-class solution for crisis management and innovative commercial business solutions, our Radar Constellation is your best choice.

Our Radar Constellation provides you with reliable access to highly accurate Earth Observation data innear real-time, independent of weather and daylight conditions.

Radar Image acquisition in a unique constellation

The German TerraSAR-X / TanDEM-X satellite formation and the Spanish PAZ satellite (managed by Hisdesat Servicios Estratégicos S.A.) are being operated in the same orbit tube and feature identical ground swaths and imaging modes - allowing Airbus and Hisdesat to establish a unique commercial very high-resolution Radar Constellation. The satellites carry a high frequency X-band Synthetic Aperture Radar (SAR) sensor in order to acquire datasets ranging from very high-resolution to wide area coverage.

Play video

Key features

Key advantages of the Radar Constellation are an increased Acquisition Capacity, as well as an improved global mean Revisit Time and a significantly reduced Interferometric Repeat-Cycle supporting data-hungry, high monitoring frequency applications such as e.g.:

Change Detection for Image Intelligence as well as Maritime Surveillance, or
InSAR Analysis for oil and gas field- or civil engineering structure measurements of ground surface motion (uplift or subsidence) with millimetre precision and high resolution.

6 acquisition modes with lexible spatial resolution (from 25cm to 40m) and footprint
Weather and daylight independent site access to any point on Earth

High agility (rapid switches between different imaging modes and polarizations)

4/7 days Interferometric Repeat Cycle, Global mean revist time < 24 hrs
Unrivalled geometric accuracy and excellent radiometric accuracy

Your advantages with Radar Constellation

Reliable & timely

Fully operational at night or during periods of cloud coverage

Versatile & flexible

Wide area monitoring, suited for e.g. maritime surveillance and pinpoint detail down to 25cm resolution, allows for interpretation close to optical imagery

Multiscale Elevation Models

With vertical accuracy up to 2m, even in areas with persistent cloud cover

SAR tutorial mini-series

Final Tórshavn Episode1 2021-07-07 IMAGE HH SRA spot 059 resized enh

Episode 1 SAR Basics

Unlike any ‘passive’ optical systems, SAR sensors do not require external illumination (sunlight) in order to collect (useful) data. Being a so called ‘active’ system, Radar provides its own energy source to illuminate the area of interest and targets – allowing Radar to acquire data completely independent of daylight or weather conditions.

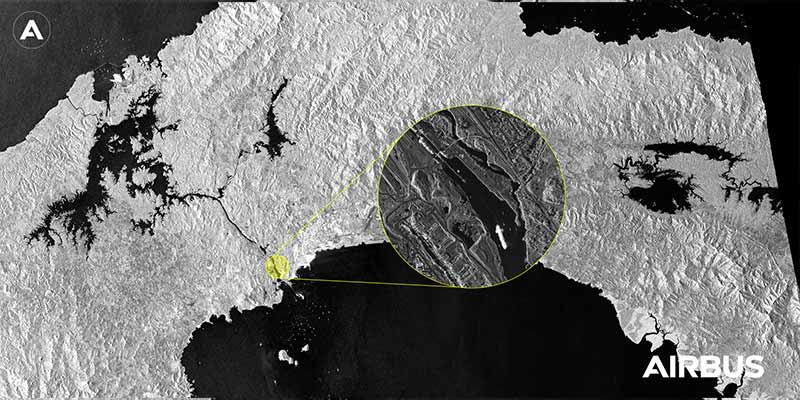

Episode 2 Acquisition Modes and Resolution

Airbus’ Radar Constellation offers six different Acquisition Modes (or satellite settings) ranging from sub-metre resolution for hot-spot monitoring all the way to large area coverage at decent resolution benefitting services such as maritime surveillance.

Final Episode 3 IMAGE HH SRA spot 070 resize complete

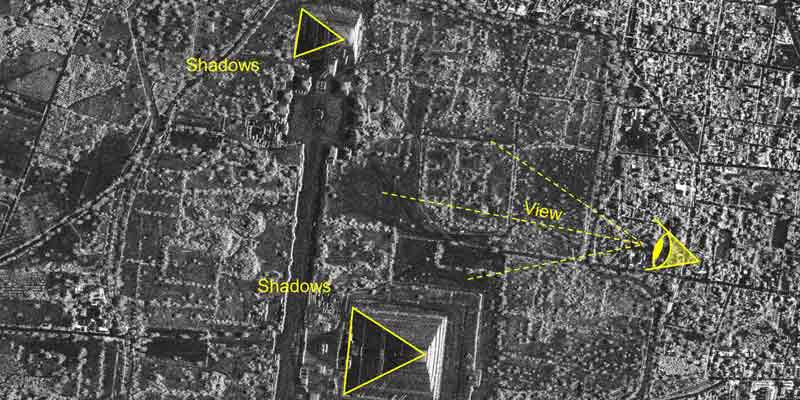

Episode 3 Radar Shadow

SAR tutorial - Final Episode 4 Honolulu 2014-02-21 complete

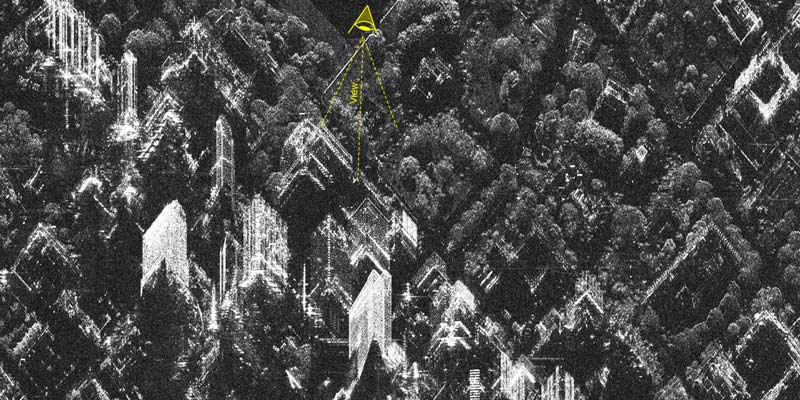

Episode 4 Layover

This is a Radar Constellation Staring SpotLight sub-metre resolution image of Downtown Honolulu, Hawaii. Similar to distortions encountered when using cameras, radar images are also subject to geometric distortions due to relief displacement. The so called layover always occurs when a radar beam reaches the top of an object (e.g. a tall building as shown in this image) before it reaches the ground.

Final Episode 5 IMAGE HH SRA spot 062 complete

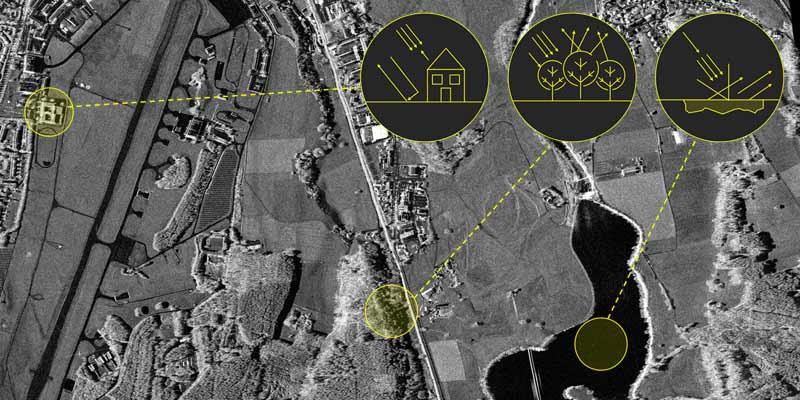

Episode 5 Backscattering

This Radar Constellation High Resolution SpotLight has been collected over an area in Bavaria, Germany.
Radar sensors are always looking sideways towards the ground at a specific, selectable incidence angle. This causes a 3D look of the area due to radar shadow and layover effects (see #Episodes 3 and #4 for more information).

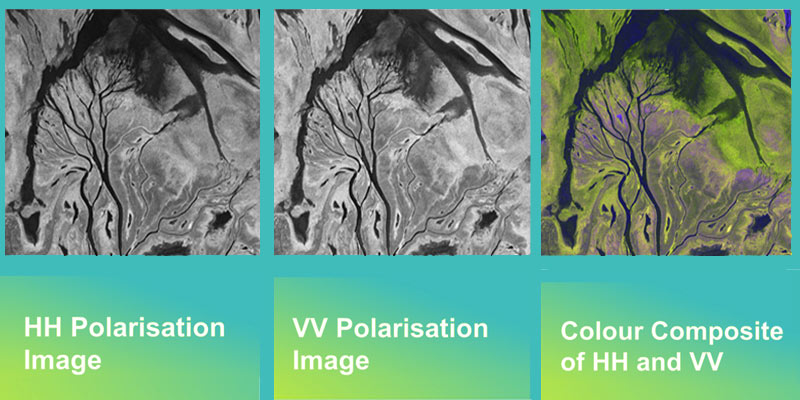

Episode 6 Polarisation

This Radar Constellation image in StripMap mode at 3m spatial resolution has been collected over Po Yang Hu Reservoir in China. It is presented here in two different layers, so called ‘polarisations’ and their color combination.

Final Episode 7 0ntario 10-18 10-29 11-09 ampl complete

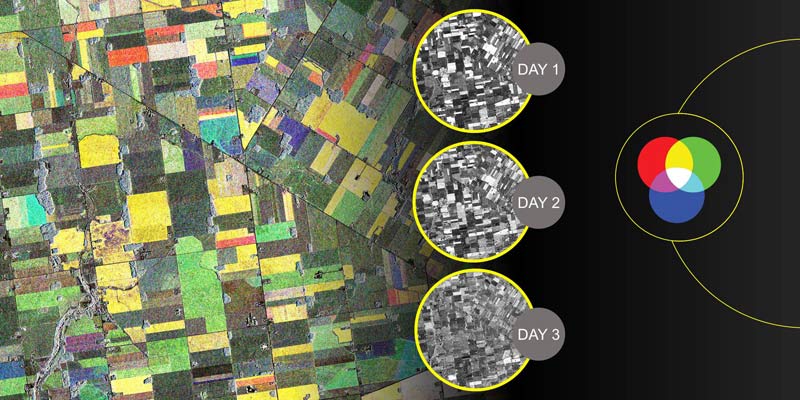

Episode 7 Colour Composite

This Colour Composite image of London, ON, Canada has been created from three StripMap images at 3m resolution, collected over the area in October and November.

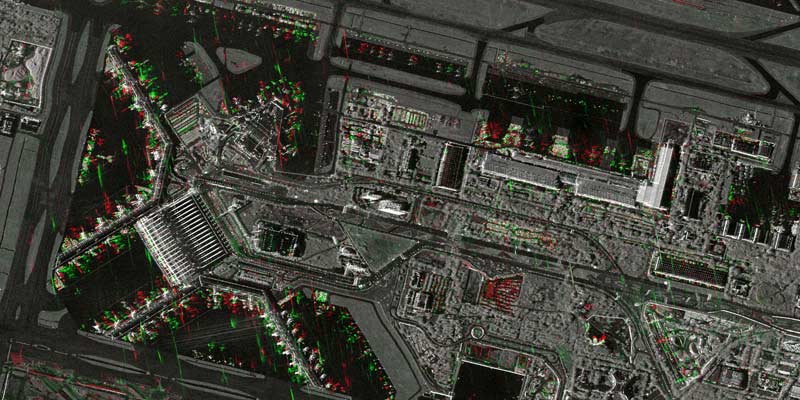

Episode 8 Amplitude Change Detection

This Amplitude Change Detection (ACD) image of India’s Indira Gandhi International Airport has been created from two Radar Constellation Staring SpotLight images, acquired on different dates and at sub-metre resolution.

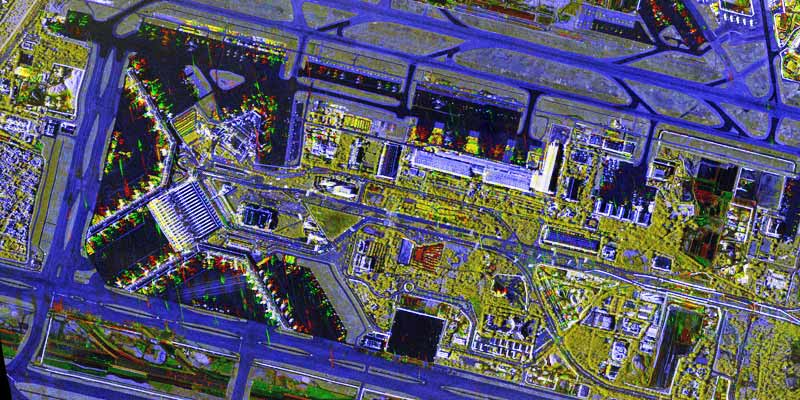

Episode 9 Coherence Change Detection

Similar to the previous #Episode 8, this Coherence Change Detection (CCD) image of Indira Gandhi Int’l Airport, New Delhi has been created from two Radar Constellation Staring SpotLight images, collected at an interval of 11 days.

Our products in action

Dam Monitoring with TerraSAR-X InSAR Analysis - An Effective Alternative to Terrestrial Surveying

The Mosul Dam was built in the early 1980s. With a length of 3.65km and the crest elevation at 341m, the Mosul dam is the largest dam in Iraq. It is located in Northwestern Iraq on the Tigris River, upstream of the city of Mosul.

Early Drought and Disease Detection in Eucalyptus Clones at Scale

Planted Eucalyptus forests are increasingly threatened by changing climate. There is a need for an early warning system capable of monitoring large forest areas. Radar and optical imagery was successfully used to track leaf loss patterns.

The Metaverse Requires Very High Resolution, Spatially Accurate, Timely Geospatial Data

‘Metaverse’ is a catch-all term that describes a fully immersive, virtual 3D world where visitors can interact with their surroundings and each other, often through the use of VR headsets or advanced visualization and simulation software. The most prominent variations of this definition hinge on whether the created worlds are representations of reality, fiction, or something in between.
