2018 Hokkaido Earthquake and Post-disaster Monitoring

Japan is constantly under threats from natural disasters. To protect people’s lives and minimise economic losses, the authorities need immediate information from the affected areas.

Pléiades SPOT 6/7

Security Civil Engineering and Infrastructures

Japan

Back to Case Studies

Challenge

On September 6, 2018, an earthquake occurred in the central-eastern part of the Iburi area in Hokkaido, Japan. The strong tremors and massive landslides caused enormous damage to structures such as houses and roads. According to Fire and Disaster Management Agency reports, the death toll rose to 41 and 749 people were injured, while 409 houses were completely destroyed, thousands were half- or partially destroyed. Water and electricity supplies were cutoff across the island.

It was highly crucial to collect critical information soon after the earthquake and efficiently provide it to the relevant ministries and organisations including: the disaster affected municipalities, private corporations, media, etc.

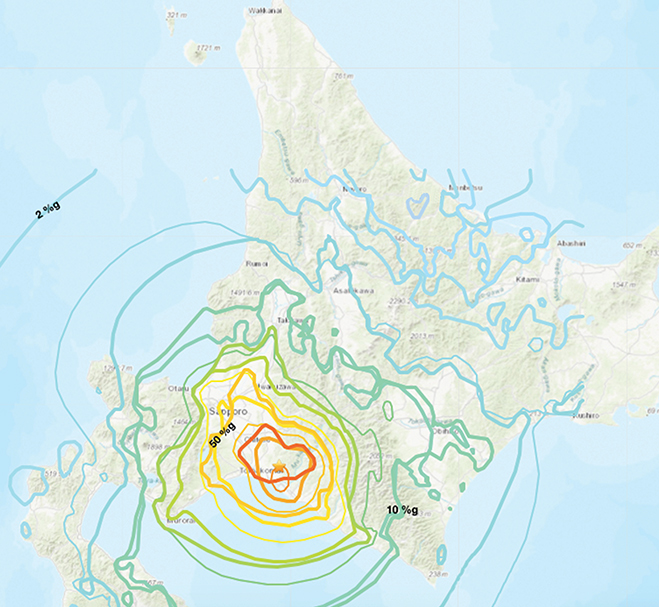

Illustration challenge hokkaido earthquake case study

Solution

SPOT and Pléiades satellite imagery were acquired to grasp an overview of the wider areas of destruction quickly and precisely to facilitate damage assessment and prevent secondary disasters and enable smooth recovery work.

Thanks to the Okinawa Ground Station in Japan, SPOT imagery production was performed and delivered within 4 hours of acquisition. A report was produced and delivered quickly after.
PASCO significantly contributed to the swift understanding of the situation by providing collected and analyzed information such as:

Automatic interpretation of sediment movement based on SPOT satellite imagery that were interpreted through advanced image analysis with in-house (PASCO) algorithms.
Numerous occurrences of slope collapses were clearly observable on 50 cm Pléiades image.
Aerial Photography
Superimposing Pléiades and SPOT imagery to then layer vector information on top. The vector information are also overlaid.
Creation of 3D information for the landslides
Satellite images from night time acquisition

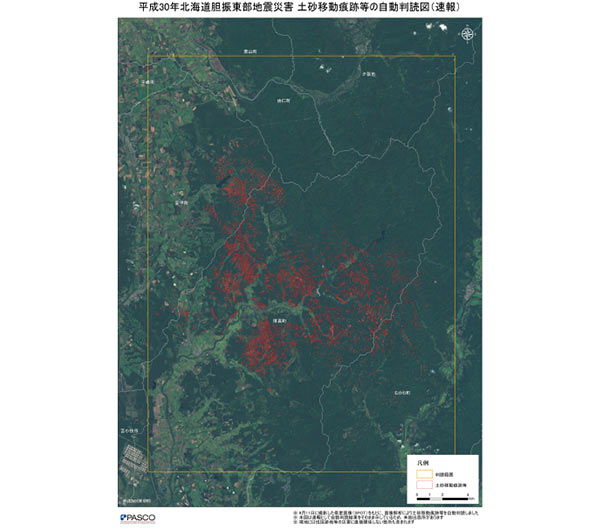

SPOT image showing sediment movement traces following the Earthquake

Sediment movement traces, etc. are shown in red patches extracted from SPOT imagery by automatic analysis.

Case study Hokkaido Earthquake

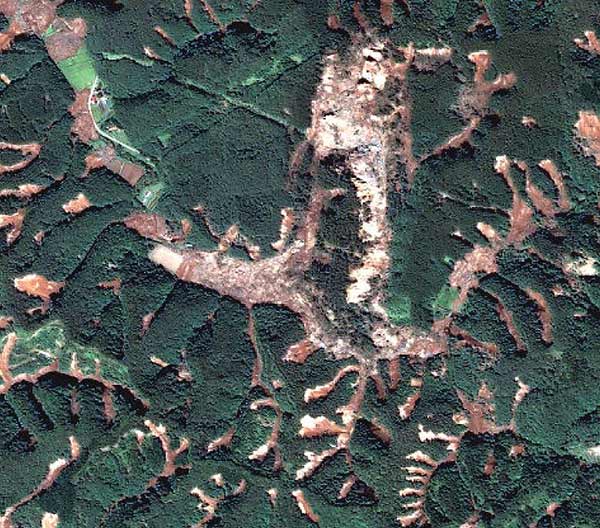

Pléiades imagery acquired on September 11, 2018 shows a landslide upstream on the Horonai River in Hidaka.

Benefits

Play video

Earth observation satellite imagery is one of the main resources to monitor natural disasters. The four optical satellites (Pléiades 1A and 1B and SPOT 6/7) are operated on the same orbit and offer the perfect combination of wide swath, fine monitoring and revisit. SPOT 6/7 benefit from high resolution, broad coverage, enabling a revisit at least once a day for any point on Earth, and hence a rapid identification of the location and extent of post-disaster damage making them most suitable for disaster monitoring.

Pléiades’ 50cm resolution offers an optimum level of detail with location accuracy and excellent image quality makes the imagery ideal for information extraction for a post- disaster situation. PASCO downlinks the SPOT and Pléiades data at the Japanese Ground Station and offers the deliverable products in a timely manner.

PASCO has successfully monitored several disasters in the past by utilising various EO satellites’ imageries for both Japan and other countries. Utilisation of multi-source and multi-temporal data, speedy processing, 3D data creation, automatic change detection methodologies and rapidly information provision are highly crucial aspects in the hours and days after any disaster.

Video caption: With the help of SPOT7 imagery, PASCO created a 3D animation just a few hours after the acquisition on 11th September

Organisations Involved

Established in 1953, PASCO is a Japanbased company and aims not only to observe the earth from spaceborne to shipborne by surveying and highly advanced measurement technology but also to integrate every “measurement” into geospatial information.

PASCO entered into a distribution agreement as a Direct Receiving Station with Airbus Defence and Space in 2003, when PASCO purchased Pixel Factory to produce 3D mapping products. Now they can sell SPOT 6/7, Pléiades, and TerraSAR-X imagery on behalf of Airbus.

PASCO Website

"PASCO supports disaster prevention, mitigation and emergency response activities using its geospatial information technology to secure lives and property to help avoid stagnation in economic activities. The benefits that Pléiades and SPOT imagery provide, can be combined with other geospatial information and data so that PASCO can help responders prioritise disaster response and reconstruction work."

ISHIZUKA Takaya

Satellite Business Division

PASCO CORPORATION

See Our Products in Action

Dam Monitoring with TerraSAR-X InSAR Analysis - An Effective Alternative to Terrestrial Surveying

The Mosul Dam was built in the early 1980s. With a length of 3.65km and the crest elevation at 341m, the Mosul dam is the largest dam in Iraq. It is located in Northwestern Iraq on the Tigris River, upstream of the city of Mosul.

American Football Stadiums Seen by the Pléiades Satellite

Airbus Defence and Space presents the Pléiades images of the 14 largest stadiums in the United States. The impressive architecture of these stadiums has contributed to making US Football one of the most followed sporting events in the world.

PASSAGES - Or Planning of Radar Tower Locations in the Northwest Passage with WorldDEM

The Northwest Passage, the connection between the North Atlantic and Pacific Ocean, is approximately 5,780km long. It runs through the Canadian Arctic Archipelago and is a complex winding maze of channels, bays, and straits that pass through often ice-choked Arctic waters, an area virtually impassable in the past. However in recent years, due to climate change, both commercial and leisure traffic are now able to pass through this region.

Remote Monitoring of Iron Ore Mining Pits with Stack Insight

Stack Insight: The Number One Solution for Mining Companies.

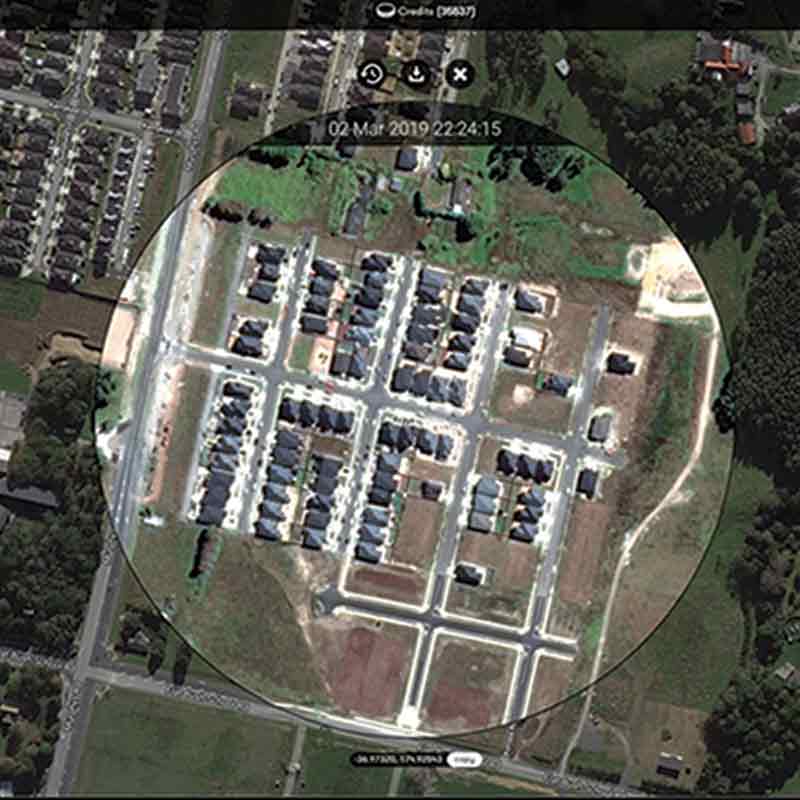

Data Powers Innovation in Digital Analytics with Bird.i
