Planning and Exploration Tool

Construction planning for deployable infrastructures

The Planning and Exploration Tool (PET) takes efficient construction planning for the quick and easy deployment of mobile infrastructures, including the technical infrastructure, to the next level.

The construction planning for deployable facilities such as field camps, command posts, medical facilities and other mobile systems can be a challenge for the construction manager. Depending on the mission and the local situation, a suitable arrangement of individual components must be chosen from a variety of construction variants.

Planning and Exploration Tool (PET) for deployable infrastructures

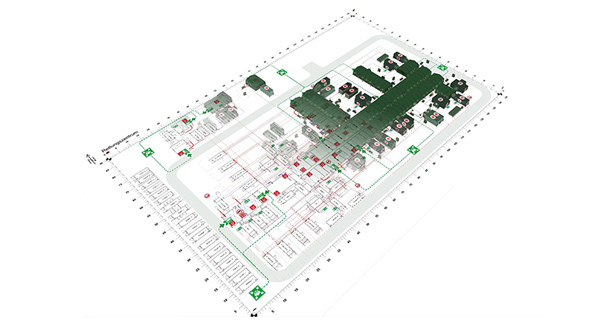

Planning and Exploration Tool (PET) 3D view of layout

This construction conﬁguration can guarantee a smooth operational, logistical or medical process, taking into account the optimum utilisation of resources whilst significantly reducing planning periods.

To master this task, the Planning and Exploration Tool (PET) allows fast, easy and automatic implementation of the construction planning process, including the technical infrastructure. The programme contains all the components (containers, tents, supply elements, etc.) that are required for the construction of a mobile facility.

The holistic approach of PET allows the planning of a fully functional facility in a few steps and in a very short time.

Play video

Planning and Exploration Tool

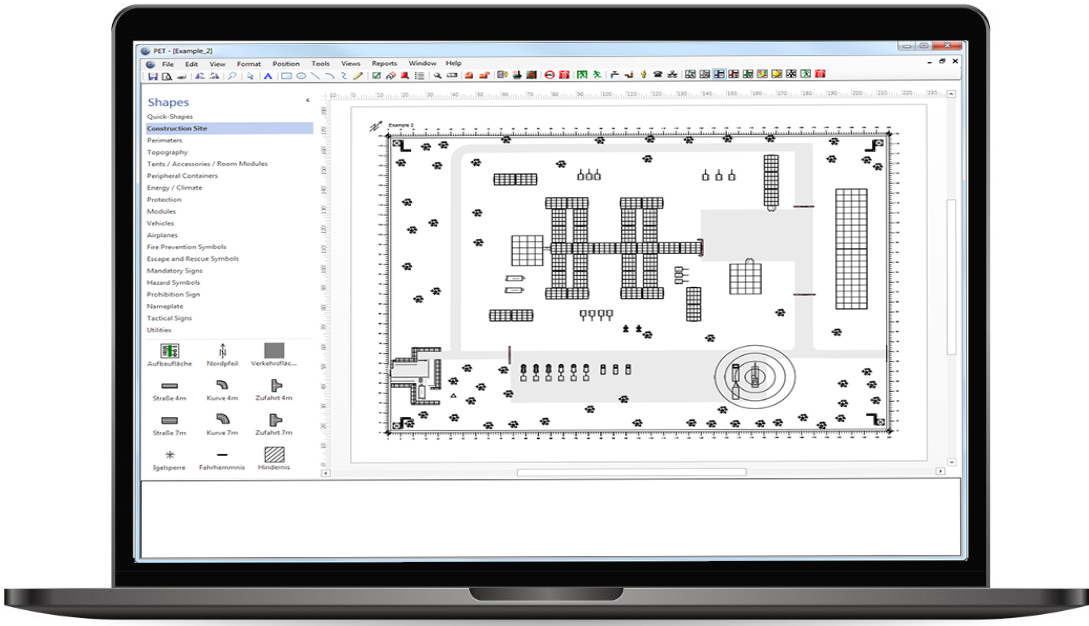

Airbus Planning and Exploration Tool (PET) software overview

Detailed View

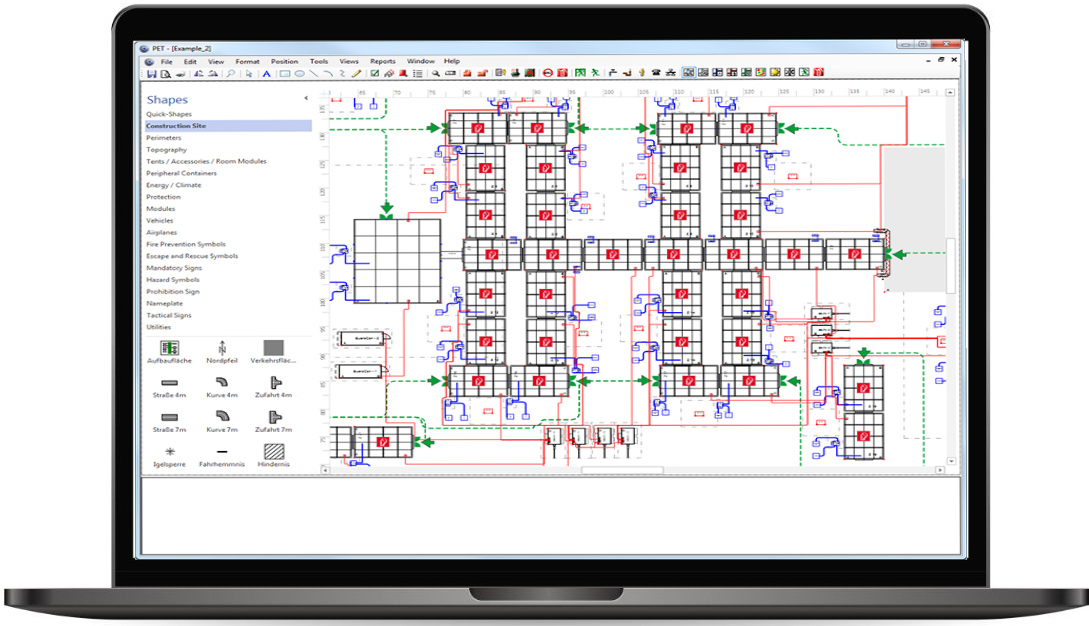

Airbus Planning and Exploration Tool (PET) displaying detailed view of construction set-up

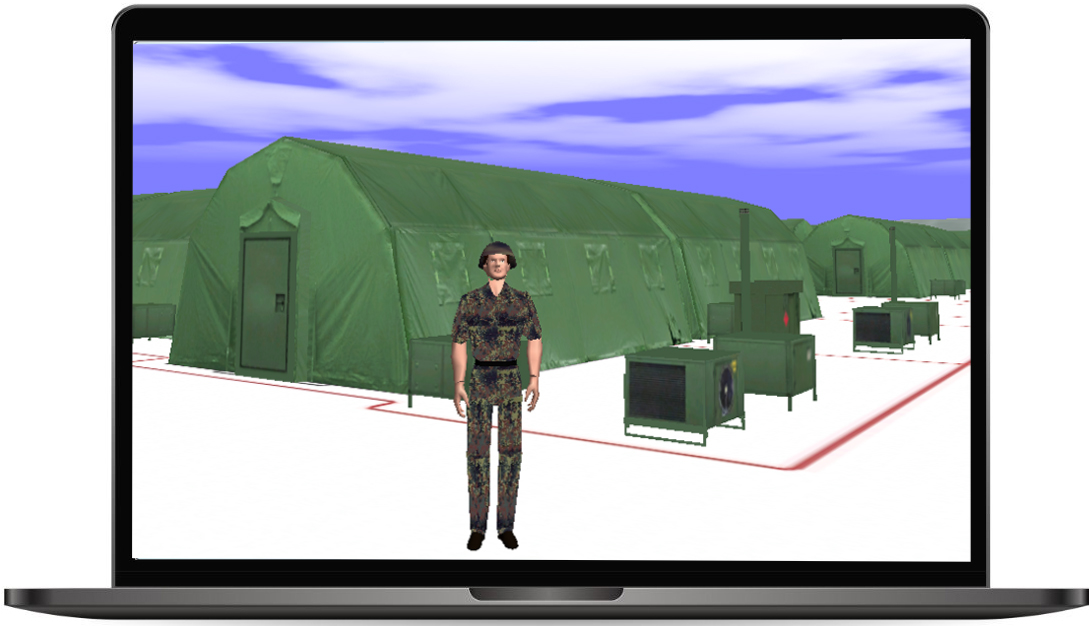

3D Virtual Exploration

3D Geo-Referenced

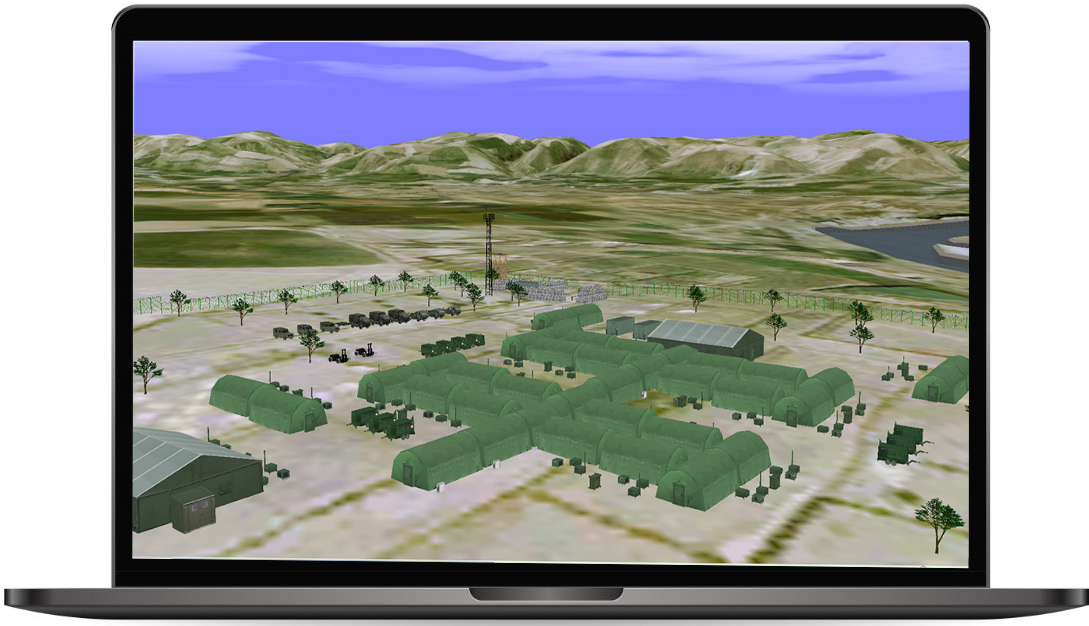

Airbus’ Planning and Exploration Tool (PET) depicting the 3D geo-referenced set-up

Command Post View

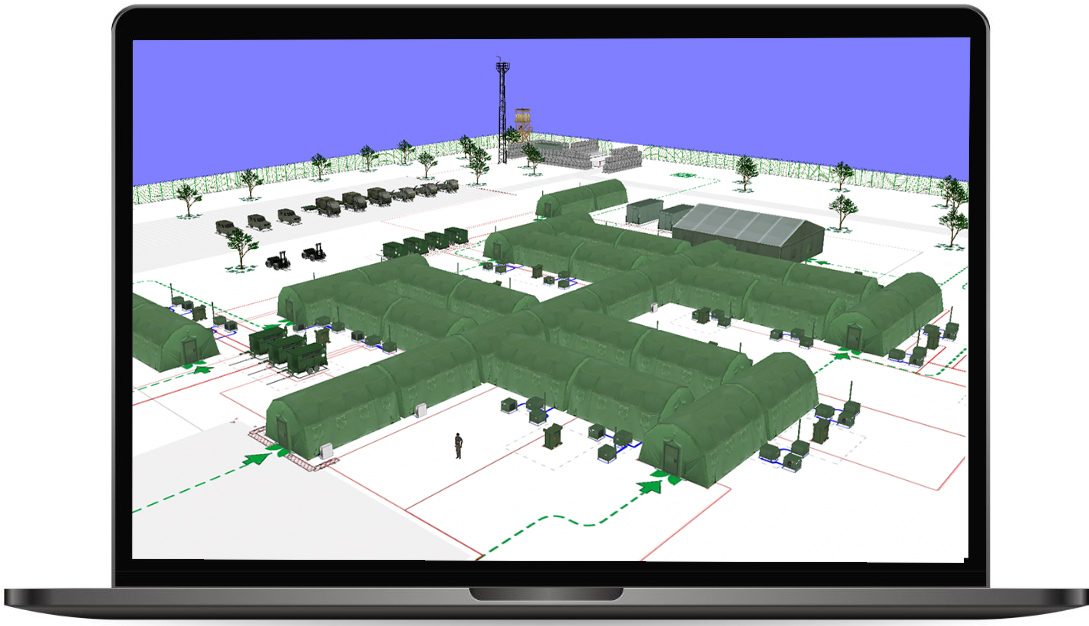

Airbus Planning and Exploration Tool (PET) highlighting a Mobile Command Post solution

Field Camp View

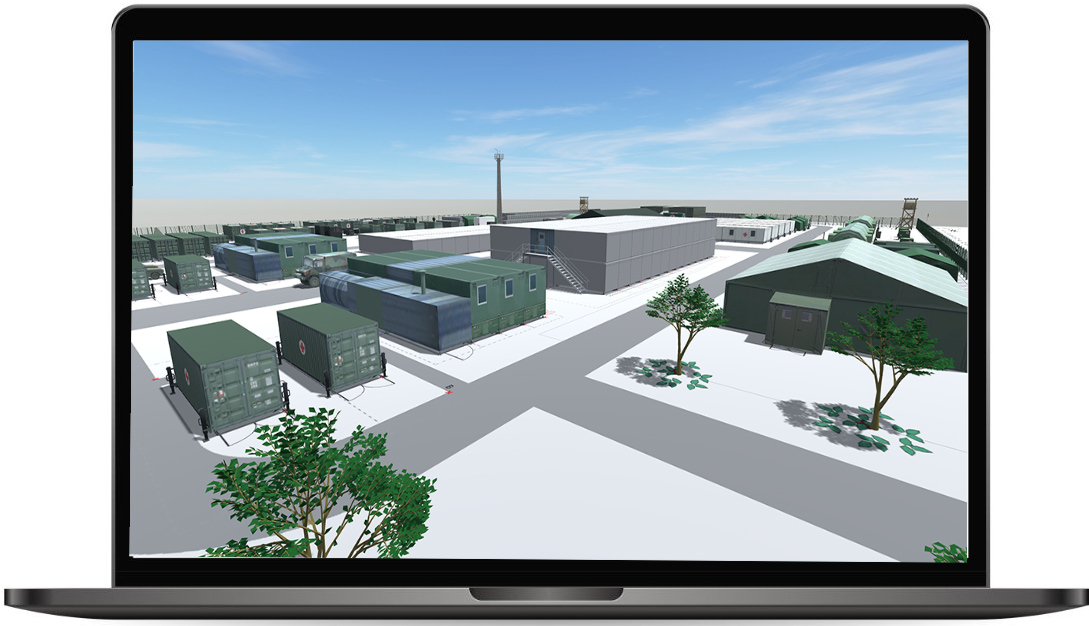

Airbus Planning and Exploration Tool (PET) showing a field camp

Medical Facility

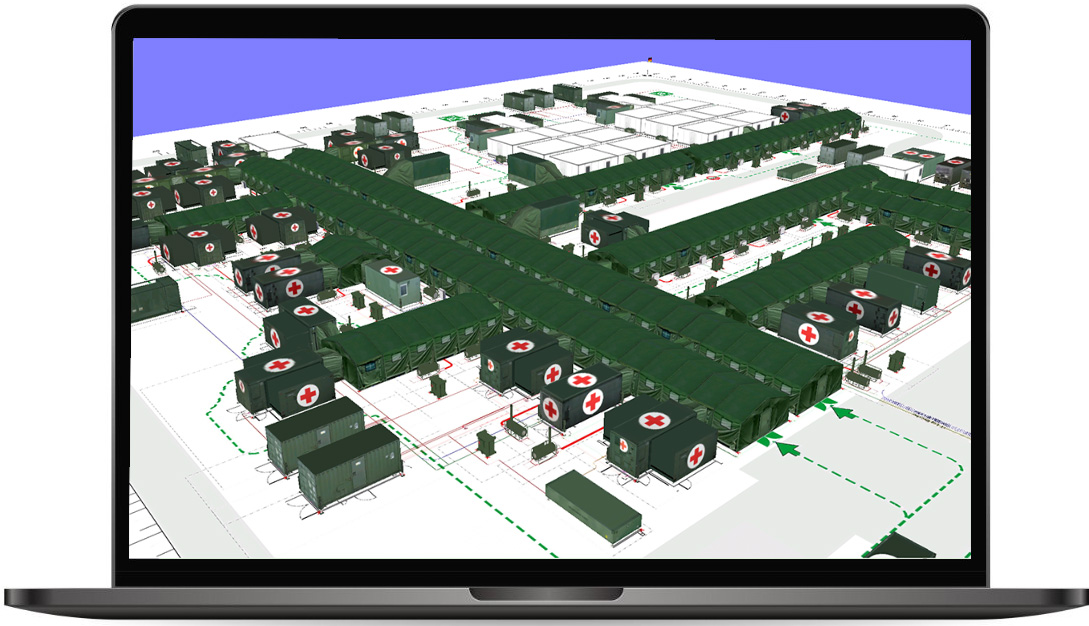

Airbus Planning and Exploration Tool (PET) displaying a medical facility

A major advantage is the possibility of 2D and 3D visual representation:

Two-dimensional plan
Three-dimensional facility which is virtually accessible and can be seen from different angles
Three-dimensional facility projected to the geo-referenced satellite image of the planned place of operation

Key features

Automated planning of the complete technical infrastructure, e.g. positioning of heaters, air conditioning and tank units
Compliance with safety and construction regulations by included rules and plausibility checks

Automatic laying of power lines, water and sewage pipes, telephone and network wires with regards to the minimum material requirements. It also includes the planning of escape routes including automatic positioning of emergency exits, smoke detectors and ﬁre alarm systems
Computer-aided training programme for the instruction of construction supervisors
